 X MORE

MORE ADVANCED, HIGH-END IEDs FOR PROTECTING, MONITORING AND CONTROLLING ELECTRIC POWER SYSTEMS.

The XMORE platform is the latest Thytronic product line to protect power generation, transmission and distribution and covers all energy market solutions: Utility, Renewable Generation, Oil&Gas, Transportation and Large energy-consuming industry. Highly flexible and scalable in terms of performance, XMORE offers tailor-made solutions thanks to the modularity of the hardware and software components.

Basic solutions and more complex configurations can be engineered referring to the same product platform: evolving your application at any time. The long-term protection solution: XMORE’s higher computing capabilities and expandable architecture increase the lifespan of the products and lower overall total ownership costs.

MORE FLEXIBLE

The XMORE platform is characterized by the high modularity and scalability of all its components.

Products are easy to customize by adding hardware modules and using the software packages needed for any specific protection application: feeder, power and distribution transformer, motor and generator, capacitor bank protection. The most suitable and scalable solution to meet today’s and tomorrow’s investments in power system protection and control.

MORE SIMPLE-X

XMore design aims to the easiness of the use.

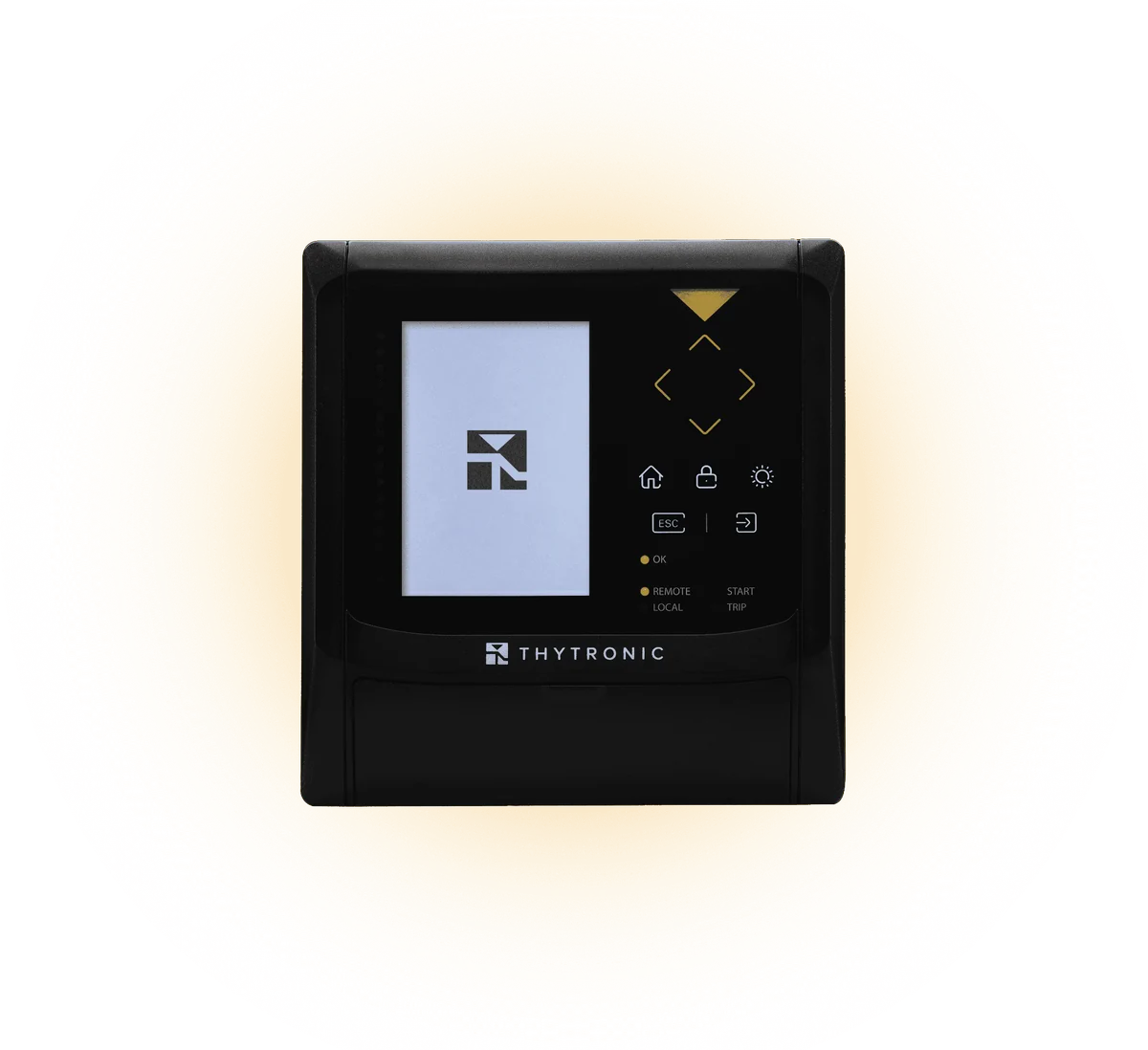

The local HMI – full size touch panel and graphical display with 10 key control function – and THYVISOR IED manager software grant a quick and easier configuration and maintenance of the relays while embedded Web Server allows easy and fast IED’s data monitoring and changes.The easy to use IED’s platform for any users: panel builders, system integrators and end-customers.

MORE EXPERIENCE

XMORE is the result of in-depth study.

Based on more than 50 years of Thytronic technical innovation and experience in power system protection, XMORE’s successful future in protection is built on the strength of current expertise and the experience of the past.

MORE EXCELLENT

XMORE is the leader when it comes to protection relay technology.

A dependable and proven protection algorithm; accurate fault detection; comprehensive control monitoring and automation operation; greater connectivity with multiple redundant communication ports supporting the following protocols: IEC61850 ed2, IEC103, Modbus TCP/IP, DNP3. The scalable hardware modularity grants up to 12 measuring analogue inputs, 53 BI, 31 BO, 16 configurable tri-color LEDs and a high speed I/O module performing arc flash protection.Short circuiting CT’s connector and pluggable main cards allow quicker maintenance and recovery time.

EXPLORE XMORE FEATURES

ACCURATE MEASUREMENTS

Enhancements to protect and analyze power system operation in disturbance conditions:

  • Up to 12 analogue inputs.
  • Non conventional CT’s/VT’s inputs
  • 32 sample for cycle Oscillography fault recording
  • Up to 0,5 class Power and Energy measurement
  • 64 sample for cycle measurement for accuracy of protection element

HARDWARE AND SOFTWARE MODULARITY

Customization of the product from the basic solution to the more complex configuration:

  • Plug in modules for HW expansion
  • Licensable SW Pack
  • I/O’s cards
  • ArcFlash module
  • Analogue (PT100, 4-20mA) cards
  • Communication cards
  • Short circuiting CT’s connector

TIME SYNCHRONIZATION

Enhanced Time synchronization solution for SOE recording:

  • Precision Time Protocol PTP according to IEC1588
  • SNTP

COMMUNICATION SECURITY

Communication Security through redundancy protocol and Cyber Security package :

  • High available Seamless Redundancy support HSR
  • Parallel Redundancy Protocol support PRP
  • Rapid Spanning Tree Protocol RSTP
  • Advanced built in Cyber Security

NETWORK CONNECTIVITY

Widely implemented in Smart Grid and Substation Automation System:

  • IEC61850 Ed.2
  • IEC 60870-5-103
  • IEC 60870-5-101
  • Modbus (Serial/TCP)
  • DNP3 (Serial/TCP)

POWER AUTOMATION, CONTROL & MONITORING

Enhanced tools and solutions for Grid Automation:Enhanced tools and solutions for Grid Automation:

  • IEC1131 PLC embedded
  • Switchgear Monitoring/Control
  • Switchgear OPEN/CLOSE local keys
  • Multi shot Automatic Reclosing
  • Multiple setting Profile
  • CB health monitoring
  • CT’s and VT’s monitoring
